Voltage：380V          Power：3 KW
Frequency：50Hz      Weight：1000KG
Packing speed: 30 packs/minute
Size：L1900×W900×H2150

Technical features:
1. 7-inch color touch screen control panel, device configuration printer using an all-in-one Touch PC to
control the printer, to meet the customer's real-time changes to the label print content.
2. Double tube design, and can be automatically rotated to the mesh bag tube. No downtime during
replacement of mesh bags, making production more continuous and significantly increased capacity.
The buffer mechanism is installed on both sides, which can effectively buffer the impact force when the
material falls, and protect the material from damage when falling to reduce the loss.
3. The whole machine parts adopt the dustproof design, can pack the big dust material, make the equipment
run more stable, maintain more simple and convenient.
4. The equipment is sealed by heat seal, which saves the time needed to install and replace sealing
consumables and the consumables needed for sealing. Improve production efficiency.
5. Capacity: 30 packs/min. Minimum/maximum packing weight: 200g to 2.5 kg.

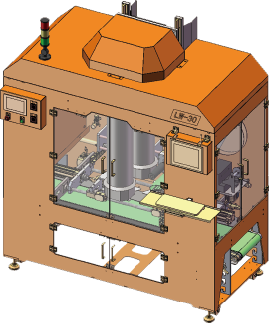

Vertical mesh bag is a vertical mesh
 bag packaging automation equipment, used
for the material packaging in double-sealed
mesh bag (knited mesh bag, Extruded mesh
bag) . The label and the hanger are heat-sealed
on both sides of the bag. The device is equipped
with an integrated PC and printer, labels can be
printed and modified in real time.
